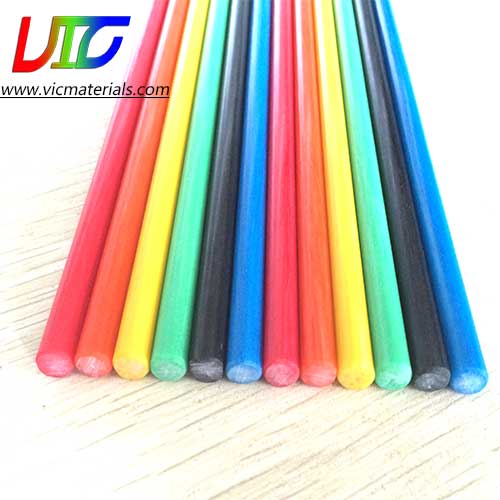

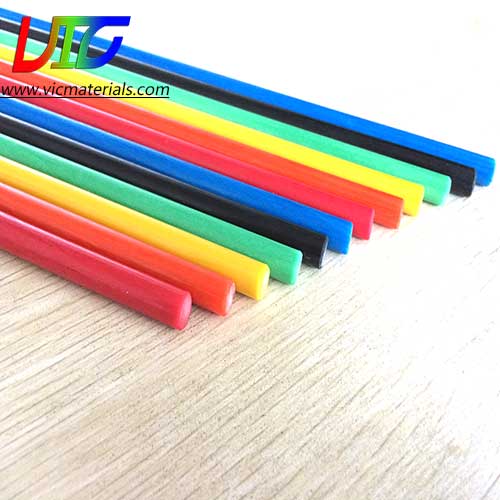

Fiberglass rods

clicks:10765
Product Category: Products Fiberglass products Fiberglass rods
product description:

Product Details

Fiberglass Rods are manufactured with pultrusion process after choosing the correct raw materials major including the resin, fibers and additives according to the requirement including mechanical strength, electrical insulation, anti-corrosion etc.

Fiberglass Rod can meet the customer's requirements by using different combination of resin, fibers and others.

Features of the Fiberglass Rod(FRP Rod):

>>Lightweight
>>High Mechanical Strength
>>UV&Corrosion Resistant
>>Outstanding Electrical Insulation Capability for Low- and Medium-Voltage
>>Flame, Smoke and Toxicity
>>Heat Resistance
>>Abrasion and Impact Resistance
>>Good Machinability

>>Longevity

Color	Black,white,red,yellow,green,blue,etc.Any color as per your request
Length	Any length as per your request
Fiber type	E-glass
Resin type	Unsaturated polyester/epoxy resin
Materials content(%)	65%glass fiber+30% resin+5% other
Working temperature	-50-180℃
UV resistant	Yes
Electric insulation	Yes
Machinability	Can be punched, drilled, milled, sawed, etc.
Product virtue	Light weight,high strength,corrosion resistant,uv resistant,etc.
Product Keywords	FRP round rod,Fiberglass rod,FRP rod

Specification table

Round rods
Diameter		Weight		Diameter		Weight
mm	inch	g/m	lb/ft	mm	inch	g/m	lb/ft
2	0.079	6	0.004	17.5	0.689	481	0.323
3	0.118	14	0.009	18	0.709	509	0.342
3.2	0.126	16	0.011	19	0.748	567	0.381
4	0.157	25	0.017	20	0.787	628	0.422
5	0.197	39	0.026	22	0.866	760	0.511
6	0.236	57	0.038	24	0.945	905	0.608
6.35	0.250	63	0.043	25	0.984	982	0.660
7	0.276	77	0.052	25.4	1.000	1013	0.681
7.5	0.295	88	0.059	26	1.024	1062	0.714
8	0.315	101	0.068	28	1.102	1232	0.828
8.5	0.335	113	0.076	30	1.181	1414	0.950
9.5	0.374	142	0.095	32	1.260	1608	1.081
10	0.394	157	0.106	35	1.378	1924	1.293
11	0.433	190	0.128	36	1.417	2036	1.368
12	0.472	226	0.152	38	1.496	2268	1.524
12.7	0.500	253	0.170	40	1.575	2513	1.689
14	0.551	308	0.207	45	1.772	3181	2.137
15	0.591	353	0.237	50	1.969	3927	2.639
15.7	0.618	387	0.260	50.8	2.000	4054	2.724
16	0.630	402	0.270	76	2.992	9073	6.097
16.5	0.650	428	0.287	100	3.937	15708	10.555

Note:

1>If you can't find the sizes you need, pls contact us.

2>Customized products are welcome!

Aplication:
